Your Complete Guide to RV Furnace Repair

Master your RV's warmth with our complete guide to RV furnace repair. Diagnose issues quickly and avoid costly mistakes on your trips!

TL;DR:

• A malfunctioning RV furnace can be diagnosed and maintained effectively through regular checks of batteries, vents, and components. Safety precautions, such as turning off propane and power before troubleshooting, are crucial to prevent hazards. Professional servicing is recommended for complex repairs, especially involving gas valves and control boards, to ensure safety and proper operation.

Few things ruin an RV trip faster than a furnace that won’t fire up on a cold Hill Country night. Whether you’re parked near Kerrville or heading through Boerne, knowing how to use this guide to rv furnace repair gives you a real advantage: you’ll diagnose problems faster, avoid costly mistakes, and understand exactly when to hand things over to a professional. This guide walks you through preparation, diagnostics, and maintenance, all with a Central Texas RV owner in mind.

Table of Contents

• Key takeaways
• Before you start: safety and tools
• Step-by-step furnace diagnostic procedure
• RV furnace maintenance for Central Texas climates
• When DIY becomes dangerous
• My honest take after years in the shop
• Get professional furnace repair in Central Texas
• FAQ

Key takeaways

Before you start: safety and tools

Before you touch anything on your RV furnace, the first rule is simple: shut off your propane supply valve and turn off the 12V DC power to the furnace circuit. Working around gas and electricity at the same time without this step creates genuine danger. It’s not a formality.

Here’s what to gather before any diagnostic work:

• Multimeter: Checks battery voltage and tests electrical continuity in components like the sail switch and ignitor
• Screwdriver set: Phillips and flathead for accessing the furnace compartment and terminal boards
• Compressed air: Clears dust, pet hair, and debris from vents and internal components
• Flashlight or headlamp: The furnace compartment is usually dark and cramped
• Propane leak detector or soapy water: Used to check line connections for leaks before restarting

Your first actual check should be battery voltage. Furnace blower motors need at least 12.0V under load to spin fast enough to trigger ignition. Anything under 12.4V under load creates unreliable operation, and battery voltage below 10.5V will cause the furnace to fail entirely or shut off mid-cycle.

Pro Tip: Before running any diagnostics, light a stove burner for 30 seconds to purge air from propane lines. Air trapped in the lines after refilling a tank is a surprisingly common cause of ignition failure.

Step-by-step furnace diagnostic procedure

Most “no heat” calls trace back to six root causes: low propane, weak battery voltage, a dirty sail switch, a failed ignitor, a faulty control board, or a clogged exhaust vent. Work through these in order rather than jumping to the most expensive possibility.

1. Check 12V DC power and fuses. Locate the furnace fuse in your main fuse panel. A blown fuse is a one-minute fix that people overlook constantly. Confirm the circuit is delivering proper voltage with your multimeter.
2. Verify thermostat operation. Set the thermostat at least 5 to 10 degrees above the current interior temperature. If your thermostat runs on batteries, replace them now. A thermostat reading heat but sending no signal is more common than people expect.
3. Inspect the sail switch. The sail switch senses airflow from the blower motor and must close before ignition can proceed. Atwood and Dometic furnaces require the switch arm to deflect 0.5 to 1 inch to close the circuit. Dust, pet hair, and insect debris are the usual culprits. Clean it carefully with compressed air and test for continuity with your multimeter.
4. Examine the ignitor and flame sensor. The ignitor generates the spark. The flame sensor confirms combustion occurred. Both can fail from corrosion or simple wear. A cracked ignitor tip or corroded flame sensor tip usually requires replacement, not cleaning.
5. Clear exterior vents. Wasps and mud daubers love to nest in RV furnace exhaust vents. A blocked exhaust will shut down the furnace instantly as a safety response. Check the exterior vent cover and clear any obstruction with compressed air or a soft brush.
6. Inspect the control board. Look for burn marks, corroded terminals, or cracked solder joints. A damaged control board cannot be repaired at home safely and should go to a professional.

Pro Tip: If the furnace runs but shuts off after a few minutes without heating the space, a dirty sail switch or propane line air purge is almost always the culprit. Start there before assuming the worst.

RV furnace maintenance for Central Texas climates

Central Texas throws wide temperature swings at RV owners. Freezing nights in January, then 90-degree days by March. That range puts real stress on furnace components that sit idle for months at a time.

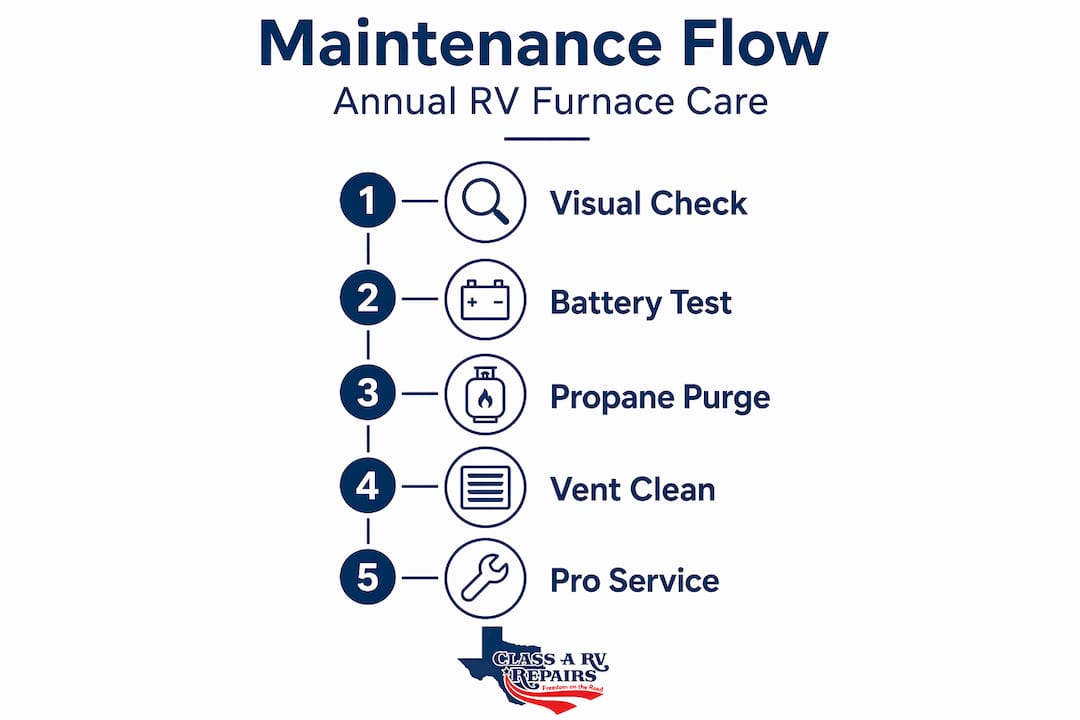

Here’s a practical maintenance routine worth keeping:

• Run the furnace monthly for 10 to 15 minutes. Monthly operation keeps components lubricated, prevents corrosion, and lets you catch problems before the first cold night of the season.
• Clean vents and the furnace compartment annually. Compressed air and a vacuum handle most of the debris that accumulates over a year of travel.
• Test CO and propane detectors monthly and replace them every 7 to 10 years. Carbon monoxide buildup can be deadly within minutes in an enclosed RV. This is not optional maintenance.
• Check propane tank recertification dates. Tanks must be recertified every seven years. The manufacture date is stamped on the tank collar. An expired tank can be refused at any fill station.
• Keep fire extinguishers accessible and functional. Position them within 2 feet of RV entrances and flip them periodically to loosen dry chemicals compacted by road vibration.
• Clear ductwork and interior vents. Blocked interior vents reduce airflow and can trigger sail switch failures even when nothing is mechanically wrong.

A professional maintenance visit once a year, timed before the fall season, catches issues that visual inspection misses. The Central Texas maintenance guide at Class A RV Repairs covers the full system checkup specific to this region’s conditions.

When DIY becomes dangerous

There’s a clear line between a competent owner and an unsafe one, and that line is usually drawn at the gas valve and control board. Here’s where things go wrong:

• Bypassing the sail switch long-term. A bypass test confirms the switch is bad, but operating the furnace without a functioning sail switch is genuinely dangerous. The switch exists to prevent combustion without airflow.
• Ignoring propane smells or unusual odors. A sulfur or rotten egg smell near your furnace means propane is escaping somewhere. Shut off the supply valve immediately and call a professional. Do not attempt to locate the leak yourself with an open flame.
• Replacing the gas valve without certification. This is a regulated component in a pressurized system. Incorrect installation creates carbon monoxide and fire risk simultaneously.
• Assuming a control board replacement is a swap. Programming and calibration are often required. A bad installation creates intermittent failures that are harder to diagnose than the original problem.

“The furnaces we see the most damage in are the ones someone tried to fix themselves three times before calling us. The original problem was a $40 sail switch. By the time we see it, the control board is also gone.”

Handling RV furnace repairs through a certified shop also matters for insurance claims. Documented professional repairs hold up during claims in a way that self-repairs do not. The top repair mistakes RV owners make in Central Texas are almost all rooted in delayed professional service.

My honest take after years in the shop

I’ve worked on hundreds of RV furnaces across the Texas Hill Country, and the pattern is consistent. Owners who stay on top of the basics, battery health, propane management, annual vent cleaning, rarely have emergencies. The ones who call us in January with no heat are almost always the ones who skipped the fall checkup.

What I’ve also learned is that the sail switch causes more frustration than any other single component, because it fails subtly. The furnace tries to start, you hear the blower run, and then nothing. Owners assume the ignitor or gas valve is gone. Nine times out of ten, it’s the sail switch needing a cleaning or a $20 replacement.

The thing I want every RV owner to take away is this: know enough to diagnose, but respect what you don’t know. Gas systems in an enclosed living space are not the place to experiment. The cost of a professional visit is almost always less than the cost of fixing a DIY repair gone wrong.

Get professional furnace repair in Central Texas

At Class A RV Repairs in Pipe Creek, TX, we handle the full range of furnace work that San Antonio, Boerne, Kerrville, and Hill Country RV owners need: diagnostics, component replacement, system testing, and seasonal maintenance. Our facility keeps a strong supply of parts on-site, which means faster turnaround than most shops. We work directly with insurance companies when furnace failures connect to covered system damage. Whether your furnace won’t ignite, shuts off mid-cycle, or hasn’t been serviced in years, our team gives you a clear diagnosis and a fair repair plan. Check our full RV repair services or explore our on-site camping options while your RV is in the shop.

FAQ

What causes an RV furnace to blow cold air?

Cold air from a running furnace usually means the ignitor failed or the propane supply is interrupted. The blower runs, but combustion never starts, so only unheated air moves through the ducts.

How do I know if my RV sail switch is bad?

If the furnace blower runs but the burner never lights, the sail switch is likely the problem. Test it with a multimeter for continuity. No continuity when the blower is running confirms the switch needs replacement.

Can I repair my RV furnace myself?

Basic diagnostics like checking fuses, cleaning the sail switch, and clearing vents are reasonable owner tasks. Gas valve replacement, control board work, and any repair involving propane connections require a certified technician.

How often should an RV furnace be serviced?

Annual professional service before the fall heating season is the standard recommendation. Monthly self-testing keeps components active and helps you catch issues between professional visits.

Why does my RV furnace keep shutting off mid-cycle?

Frequent furnace lockouts usually point to a dirty sail switch or air trapped in the propane lines. Low battery voltage is the second most common cause and is easy to check with a multimeter before calling for service.
