RV Electrical Troubleshooting Guide for Texas RV Owners

Navigate RV issues with our RV electrical troubleshooting guide. Diagnose problems quickly and save on costly repairs with expert tips!

TL;DR:

• RV electrical troubleshooting involves diagnosing 12V DC and 120V AC failures to restore power safely and avoid costly repairs. Knowing key components, tools, and systematic methods helps identify issues like tripped GFCIs, faulty converters, or wiring problems effectively. When diagnosis reveals complex faults or live wiring concerns, consulting professional technicians ensures safety and proper repair.

RV electrical troubleshooting is the process of diagnosing and resolving both 12V DC and 120V AC system failures in motorhomes and travel trailers so you can restore power safely and avoid unnecessary repair costs. Whether your outlets went dead at a Hill Country campsite or your lights are dimming on the road between Kerrville and San Antonio, a structured diagnostic approach gets you to the root cause faster than guessing. This guide walks you through the terminology, tools, and step-by-step testing process that professional technicians use, and explains when a problem has moved beyond what you should handle yourself.

What is an RV electrical system and how does it work?

RV electrical systems run on two separate circuits that serve different purposes. The 12V DC system powers your interior lights, water pump, control boards, and slide-out motors directly from your battery bank. The 120V AC system powers your outlets, air conditioner, microwave, and other appliances through shore power or a generator, converted through your RV’s breaker panel.

Key components and terms every owner should know:

• Shore power: The 30A or 50A connection at a campground pedestal that feeds 120V AC into your RV
• Converter: Converts 120V AC shore power into 12V DC to charge your batteries and run 12V systems
• Inverter: Converts 12V DC battery power into 120V AC for use when you are off-grid
• GFCI outlet: A ground fault circuit interrupter that cuts power when it detects a current imbalance as small as 5 mA
• Breaker panel: Houses circuit breakers that protect individual 120V circuits from overload
• Fuse panel: Protects 12V DC circuits; typically located near the battery or under a cabinet

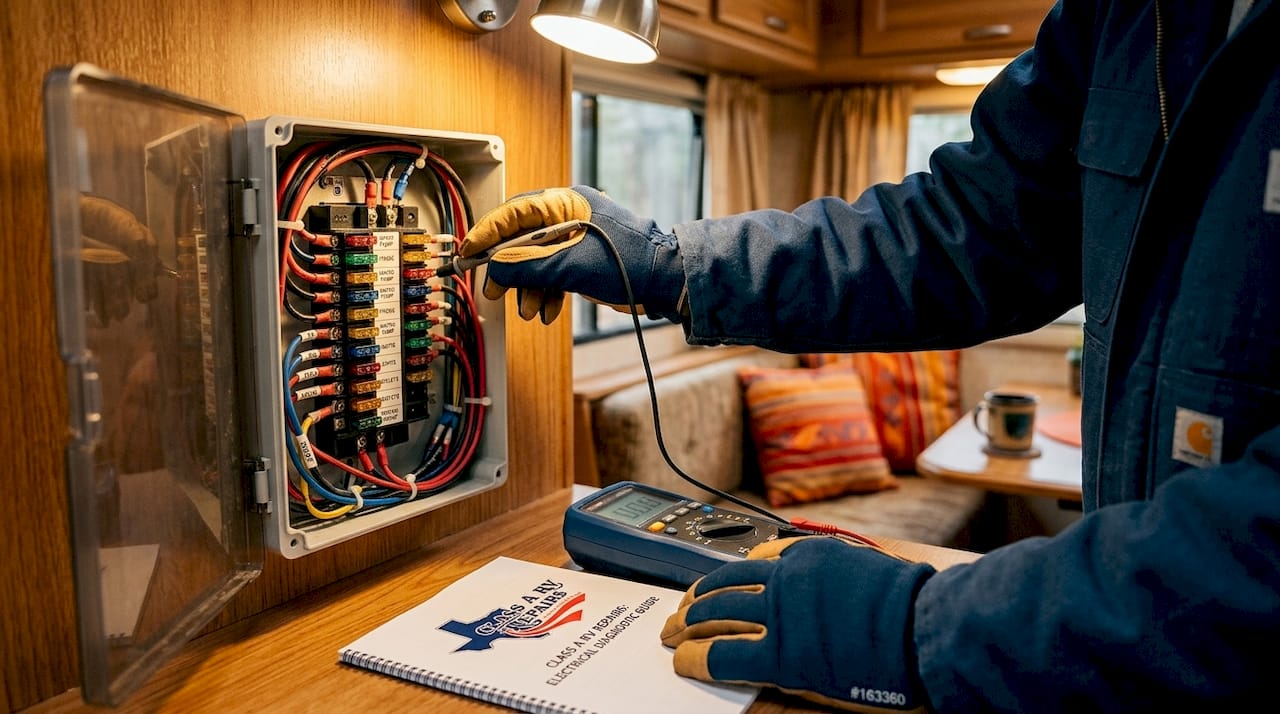

Pro Tip: Label your fuse panel if it is not already marked. In Texas summer heat, a blown fuse can look identical to a good one. A multimeter continuity test is the only reliable way to confirm which fuse has failed.

What tools and safety precautions do you need?

The multimeter is the cornerstone of accurate RV electrical diagnostics. It measures AC and DC voltage, continuity, and resistance, giving you real data instead of guesses. A quality digital multimeter from brands like Fluke or Klein Tools costs between $40 and $150 and pays for itself the first time it saves you a misdiagnosed repair.

Additional tools that belong in your RV toolkit:

• Non-contact voltage tester: Confirms live wires without touching them, critical for shore power checks
• Fuse puller: Prevents hand contact with live fuse panels
• Insulated gloves: Required when working near 120V connections
• Clamp meter: Measures current draw without breaking the circuit, useful for parasitic draw testing

Safety rules that are non-negotiable: disconnect shore power before inspecting wiring or replacing components. Set your meter correctly to AC or DC voltage before testing. Never connect probes across a live power source when your meter is set to measure current. Texas heat accelerates insulation degradation, so inspect probe cables and connections before every use.

Pro Tip: Always start with voltage measurements before touching any wiring. A non-contact tester takes two seconds and confirms whether a wire is live before your hands get anywhere near it.

How do you troubleshoot 120V AC power issues in your RV?

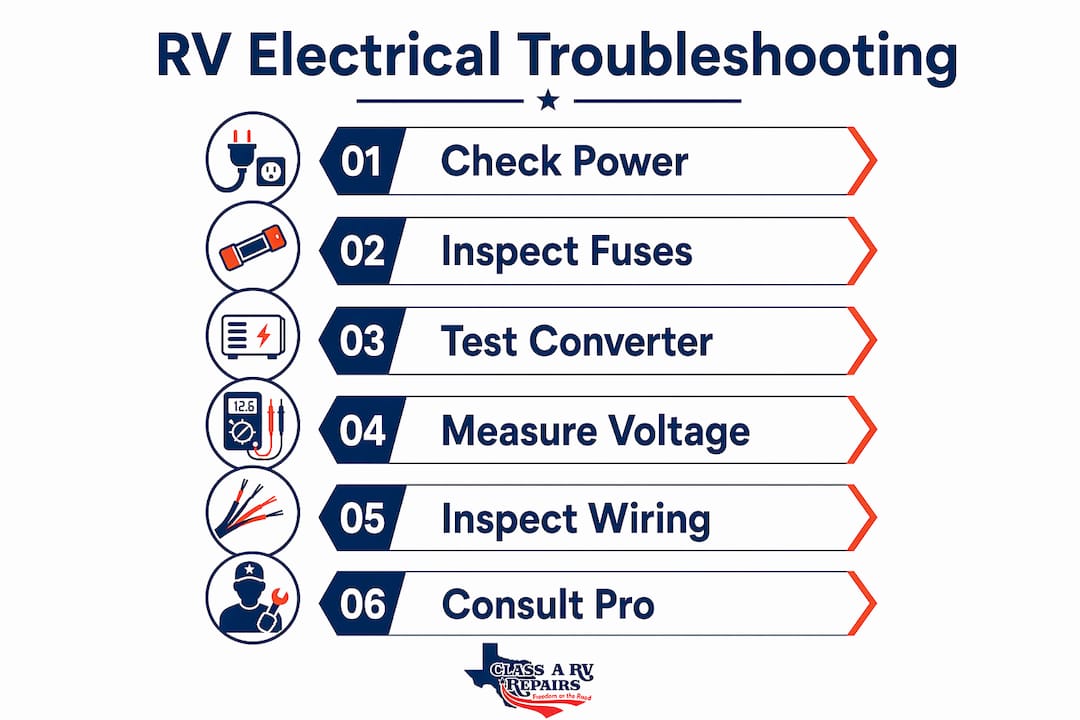

A systematic troubleshooting approach begins at the power source and works inward. Skipping steps wastes time and risks missing the actual fault.

1. Verify shore power output. Use your multimeter to test the campground pedestal. A 30A pedestal should read approximately 120V between hot and neutral. A 50A pedestal should read 240V between the two hot legs, with 120V from each hot leg to neutral and near zero between neutral and ground.
2. Inspect your shore power cord. Look for burned pins, corrosion, or physical damage at both ends. A damaged cord can pass partial voltage and cause confusing symptoms inside the RV.
3. Reset your main breaker and all secondary breakers. Flip each breaker fully off, then back on. A tripped breaker does not always look tripped.
4. Locate and reset every GFCI outlet. One tripped GFCI can disable multiple downstream outlets. Check the bathroom, kitchen, and exterior outlets. Press TEST, then RESET on each one.
5. Check for ground faults and corrosion. Ground connection corrosion causes intermittent or complete power loss even when breakers and pedestal voltage look normal. Use your multimeter in continuity mode to test ground wire integrity.

Pro Tip: If you have a surge protector or EMS (electrical management system) between the pedestal and your RV, check its display first. Many units show fault codes that tell you exactly what is wrong before you pull out a single tool.

How do you diagnose 12V DC problems including battery and converter issues?

The 12V system fails in predictable patterns. Dim or low RV lighting almost always points to a weak battery or a failing converter rather than a bad bulb. Test in this order:

• Battery voltage: A fully charged 12V lead-acid battery reads 12.6V or higher at rest. Below 12.0V indicates a discharged or failing battery.
• Converter output voltage: Connect your multimeter at the converter output terminals or battery terminals while plugged into shore power.

• Fuse panel inspection: Pull each fuse and test continuity with your multimeter. A blown fuse reads open (no continuity). Replace only with the same amperage rating.
• Terminal and wiring inspection: Corroded or loose battery terminals are the most common cause of 12V failures in Texas RVs. White or green buildup on terminals means corrosion is restricting current flow.
• Parasitic draw check: If your battery drains overnight, disconnect the negative battery cable and connect an ammeter in series. A reading above 50 mA at rest indicates a parasitic drain.

Pro Tip: Wiggle battery cables while watching your multimeter. A voltage drop during movement confirms a loose connection that visual inspection alone would miss.

What advanced techniques catch problems that basic checks miss?

Once you have confirmed shore power, breakers, GFCIs, and battery voltage, the remaining faults require more targeted methods. Parasitic draw diagnosis works by pulling fuses one at a time while monitoring current draw. When the reading drops to normal, the last fuse you pulled identifies the faulty circuit.

1. Disconnect shore power and all charging sources before starting parasitic draw testing.
2. Connect your clamp meter or ammeter in series with the negative battery cable.
3. Pull fuses from the 12V panel one at a time, waiting 30 seconds between each pull.
4. When current draw drops, the circuit connected to that fuse contains the drain.
5. On 50A systems, confirm shore power integrity by testing voltage between both hot legs, hot-to-neutral, and hot-to-ground at the RV inlet before assuming any internal component has failed.

Never replace a converter, battery, or breaker based on symptoms alone. Measure first. A steady 12V reading at the converter output while plugged into shore power confirms a charging fault in the converter, not a dead battery. Replacing the battery in that scenario wastes money and leaves the real problem in place.

Key takeaways

Effective RV electrical troubleshooting requires testing both the 12V DC and 120V AC systems in sequence, starting at the power source and working inward with a multimeter before replacing any component.

What I have learned diagnosing RV electrical problems in Central Texas

After years of seeing RVs come through the shop in Pipe Creek with electrical complaints, the pattern is consistent. Owners spend hours chasing a dead outlet only to find a single tripped GFCI in the bathroom that controls half the coach. Or they replace a battery that tests fine because the converter was never charging it in the first place. The multimeter is the tool that separates a 20-minute fix from a three-day ordeal.

What I tell every RV owner who comes in from the Hill Country or San Antonio area: the diagnostic process matters more than the repair itself. Texas summers are brutal on electrical components. Heat cycles crack insulation, corroded grounds develop fast in humid conditions near the Guadalupe River corridor, and dust from caliche roads works into connectors and fuse panels. A problem that starts as a loose ground connection becomes a fire risk if it goes unaddressed.

DIY troubleshooting is a legitimate first step. But when your measurements point to a converter fault, wiring damage, or a breaker panel that keeps tripping, that is the moment to bring it to a professional. Electrical faults that are misrepaired create liability issues for insurance claims and safety risks that no YouTube video is worth. Know your limits, document what you found, and hand off the repair with confidence.

— Jean

Get professional RV electrical diagnostics at Class A RV Repairs

When your troubleshooting steps point to a converter replacement, wiring repair, or breaker panel fault, Class A RV Repairs in Pipe Creek, TX has the diagnostic equipment and experienced technicians to get it done right. Serving San Antonio, Boerne, Kerrville, and the Texas Hill Country, the shop handles full electrical system repairs including converter replacements, shore power cord inspections, fuse panel servicing, and wiring diagnostics for motorhomes, travel trailers, and fifth wheels. Professional repair protects your warranty, supports insurance claims, and prevents the kind of recurring faults that DIY patches leave behind. Contact Class A RV Repairs to schedule an inspection or get a repair estimate before your next trip out.

FAQ

What does a multimeter read on a healthy RV battery?

A fully charged 12V lead-acid RV battery reads 12.6V or higher at rest with no load. Readings below 12.0V indicate a discharged or failing battery that needs charging or replacement.

Why do my RV outlets work but my appliances don’t?

A tripped GFCI outlet is the most common cause. One GFCI can control multiple downstream outlets, so pressing RESET on every GFCI in the coach often restores power without any wiring repair needed.

How do I know if my RV converter is failing?

Connect a multimeter to the converter output or battery terminals while plugged into shore power. A reading of 12.0V to 12.6V when the battery should be charging confirms a converter fault rather than a weak battery.

What causes parasitic battery drain in an RV?

Parasitic drain occurs when a circuit draws current continuously even with the RV powered down. Diagnosing it requires connecting an ammeter in series with the negative battery cable and pulling fuses one at a time until the current draw drops to normal.

When should I stop DIY troubleshooting and call a professional?

Stop DIY work when your measurements confirm a converter fault, damaged wiring, or a breaker that keeps tripping without an obvious cause. These repairs involve live 120V components and wiring that, if mishandled, create fire risks and void insurance claims.
