Learn how to service RV air conditioning effectively, ensuring reliable cooling and preventing breakdowns. Your guide to summer comfort!
TL;DR:
- Regular cleaning of filters, coils, and electrical checks are essential to prevent RV air conditioning failures. Annual inspections by qualified technicians ensure the sealed refrigerant system remains in good condition, preventing costly breakdowns. Proper maintenance extends the lifespan of your RV AC and keeps it running reliably during harsh Texas summers.
Servicing your RV air conditioning system means cleaning filters and coils, verifying electrical supply, and scheduling professional inspections to keep your unit cooling reliably. Knowing how to service RV air conditioning correctly separates a comfortable summer trip through the Texas Hill Country from a breakdown on a 100-degree afternoon outside Kerrville. Most rooftop AC failures trace back to three preventable causes: dirty filters, blocked coils, and ignored electrical issues. Brands like Dometic and Coleman build solid units, but no unit survives neglect. This guide covers what you can do yourself and where professional service is the smarter call.
What tools and preparations do you need before servicing your RV AC?
Preparation determines whether your service session goes smoothly or causes more damage than it fixes. Gather these tools before you touch anything:
- Soft-bristle brush or vacuum with brush attachment
- Mild dish soap and warm water
- Approved coil cleaner (non-acid formula)
- Digital multimeter
- Screwdriver set (Phillips and flathead)
- Fin comb for straightening bent aluminum fins
- Clean dry towels or a low-heat dryer
Safety comes first. Disconnect shore power completely before removing any panels or shrouds. Never spray water directly into electrical components, and never bend coil fins with metal tools.
Dometic recommends cleaning the return air filter every two weeks or as needed. Annual inspections are the baseline for most climates, but semiannual service is smarter in harsh environments like Central Texas summers where your unit runs hard for five or six months straight.
Pro Tip: Label each screw and panel with masking tape before removal. Rooftop AC shrouds use multiple screw sizes, and mixing them up during reassembly causes stripped threads.

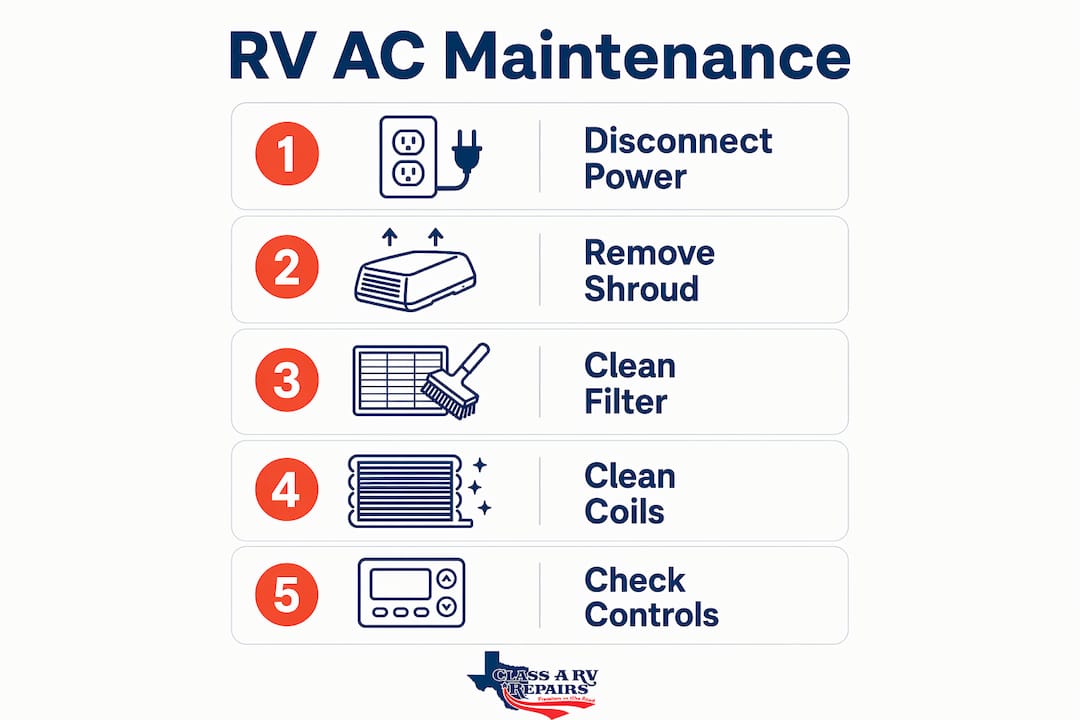

How to clean RV AC filters and coils step by step
Cleaning filters and coils is the single highest-impact maintenance task an RV owner can perform. Most rooftop AC problems including no cooling, freezing, and breaker trips trace directly to dirty or missing return air filters and blocked coils.
Filter cleaning procedure
- Turn off the AC unit and disconnect shore power.
- Locate the return air filter on the interior ceiling unit. Most Dometic and Coleman units use a slide-out or clip-in foam or mesh filter.
- Remove the filter carefully and inspect it. Heavy gray buildup means airflow is already restricted.
- Wash the filter with warm soapy water, rinse thoroughly, and lay flat to dry completely.
- Reinstall only when fully dry. Running the unit without the filter installed pulls debris directly into the evaporator coils.
Never run the unit without the return air filter in place. That single mistake accelerates coil fouling and can void your warranty.
Coil cleaning procedure
Coil cleaning requires roof access and more care. Here is what the process looks like:
- Remove the rooftop shroud by unscrewing the perimeter fasteners.
- Use a soft brush or vacuum to remove loose debris from the condenser coils.
- Apply a non-acid coil cleaner according to the product label. Let it dwell for the recommended time.
- Rinse gently with low-pressure water, directing flow away from electrical components.
- Inspect the aluminum fins. Bent fins block airflow as effectively as dirt does.
- Use a fin comb to straighten any bent sections. Work slowly and in the direction of the fins.
Pro Tip: Upgrading to a HEPA-rated filter where your unit supports it reduces how often you need to clean coils and improves cabin air quality at the same time.
| Task | Frequency | Who Does It |
|---|---|---|
| Filter cleaning | Every 2 weeks or as needed | Owner |
| Coil vacuuming | Monthly during heavy use | Owner |
| Full coil cleaning | Annually | Owner or technician |
| Fin straightening | As needed | Owner with fin comb |
| Heat exchanger service | Annually | Qualified technician |
Annual specialist servicing of the heat exchanger is not optional. Dometic’s own guidance flags it as a required yearly task, not a suggestion.

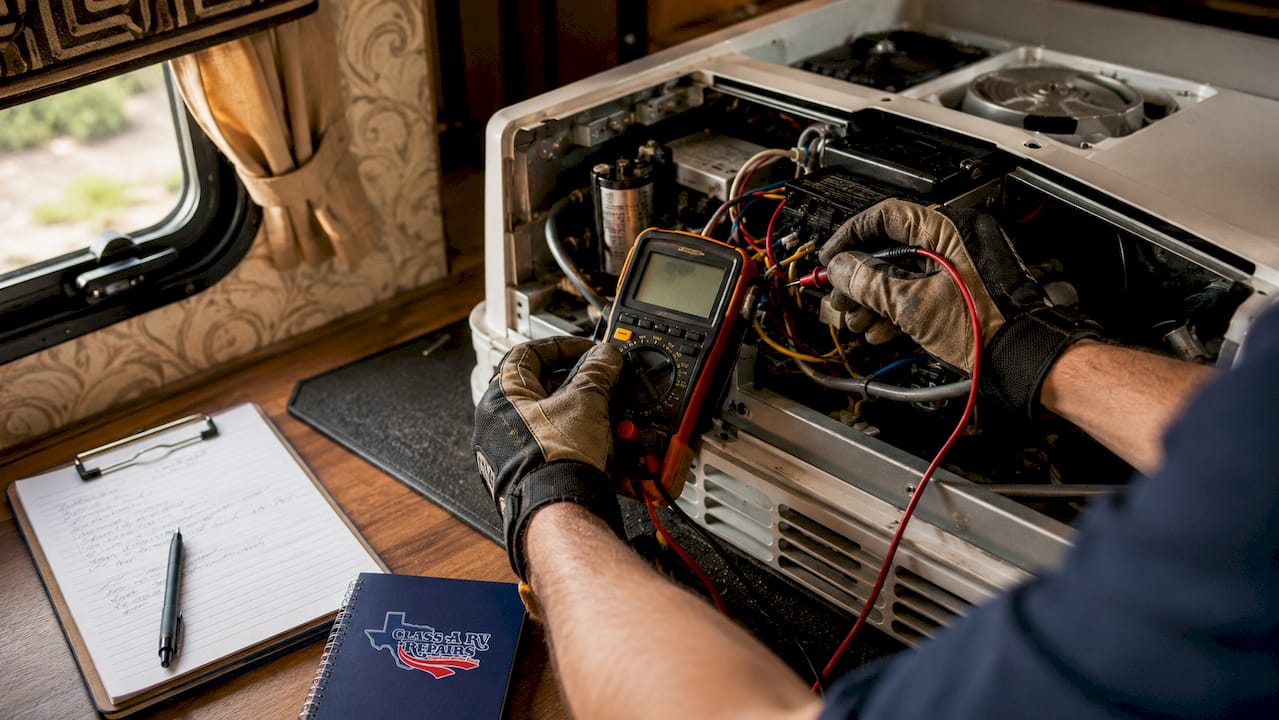

How to check electrical supply and controls for your RV air conditioner
Electrical problems cause more apparent AC failures than actual mechanical failures. Before assuming your compressor is dead, work through this checklist:
- Shore power voltage: Test the campground pedestal with a multimeter or plug in a known working appliance. Expected voltage is 115–125V. Anything below 108V is a red flag and can damage your compressor over time.
- RV breaker panel: Locate the breaker dedicated to your AC unit. Reset it if tripped. A breaker that trips repeatedly signals a deeper electrical fault, not a one-time surge.
- 12V DC supply: Your thermostat and control board run on 12V DC. Check the fuse panel and verify the thermostat display powers on. A dead display with good shore power points to a blown 12V fuse or a wiring fault.
- Thermostat function: Set the thermostat well below ambient temperature and listen for the compressor to engage within 60 seconds. No response after a correct power check means the control board or thermostat needs professional diagnosis.
Thorough electrical diagnostics before any sealed-system repair save significant cost. Many technicians find the compressor is fine once voltage and control issues are resolved.
Pro Tip: Keep a small notebook in your RV to log voltage readings, thermostat settings, and any symptoms. Documented maintenance records speed up professional diagnostics and support warranty claims.
What signs mean your RV AC needs professional service?
Some symptoms tell you clearly that DIY maintenance has reached its limit. Call a qualified technician when you notice any of the following:
- The unit blows warm air after you have cleaned filters and confirmed good voltage
- The AC freezes up repeatedly even after restoring airflow. Freezing often signals restricted airflow or a refrigerant issue requiring professional attention
- The breaker trips every time the compressor tries to start
- You hear grinding, rattling, or squealing from the rooftop unit
- Water is leaking inside the RV from the ceiling unit
- The unit short cycles, turning on and off every few minutes
Symptoms like weak airflow, strange noises, and water leaks are not minor annoyances. They indicate the system is working harder than it should and component failure is close.
RV air conditioners have sealed refrigeration circuits. Beyond cleaning coils and straightening fins, no internal refrigeration component service is safe or recommended for DIY. A certified technician uses a digital manifold gauge set and measures compressor capacitor microfarads to isolate faults accurately before replacing anything.
The sealed refrigeration system inside your rooftop AC is not a DIY repair zone. Refrigerant handling requires EPA certification, and improper work voids manufacturer warranties. For RV owners in San Antonio, Boerne, or anywhere in the Hill Country, a professional inspection once a year is the most cost-effective insurance against a mid-trip failure.
Key takeaways
Effective RV air conditioning service requires owner-level filter and coil cleaning, verified electrical supply, and annual professional inspection of sealed components.
| Point | Details |
|---|---|
| Clean filters every two weeks | Dirty filters cause most AC failures including freezing, weak airflow, and breaker trips. |
| Verify voltage before diagnosing | Shore power below 108V damages compressors; check voltage before assuming mechanical failure. |
| Annual professional inspection | Heat exchangers and sealed refrigerant systems require qualified technician service every year. |
| Document every service | Logged voltage readings and maintenance dates accelerate diagnostics and support warranty claims. |
| Know when to stop DIY | Refrigerant handling, compressor faults, and repeated breaker trips require certified technician work. |
What i have learned watching RV AC systems fail
I have seen the same pattern repeat itself in our service bay more times than I can count. An owner skips filter cleaning for a season, the coils ice over, and they assume the compressor is shot. Nine times out of ten, the compressor is fine. The real culprit is six months of neglected airflow.
The other mistake I see constantly is treating the AC service schedule as a calendar task rather than a condition-based one. Condition-based maintenance tied to actual symptoms and measurements outperforms rigid schedules. If your unit is running hard through a Central Texas summer, inspect it more often than the manual suggests.
The owners who get the most life from their AC units are the ones who treat the preventative maintenance guide as a living document, not a one-time checklist. They log readings, clean filters consistently, and call us before a small symptom becomes a full replacement.
— Jean
Professional RV AC service in central texas and the hill country
If your RV air conditioner is showing symptoms you cannot resolve with filter cleaning and electrical checks, Class A RV Repairs handles the full scope of RV AC diagnostics and repair for motorhomes, travel trailers, and fifth wheels across Central Texas. The shop serves San Antonio, Boerne, Kerrville, and the surrounding Hill Country from its purpose-built facility in Pipe Creek, TX. The team carries parts on-site for faster turnaround, works directly with insurance companies when applicable, and offers on-site camping accommodations while your rig is being serviced. Book your inspection before the peak summer heat arrives. View the full range of RV services available at Class A RV Repairs.
FAQ
How often should i clean my RV AC filter?
Clean the return air filter every two weeks during active use, or more often in dusty conditions. Always dry it completely before reinstalling.
What voltage should my RV AC receive at the campground pedestal?
Your unit needs 115–125V to operate correctly. Voltage below 108V is a warning sign that can damage the compressor over time.
Can i recharge the refrigerant in my RV air conditioner myself?
No. RV air conditioners use sealed refrigeration circuits, and refrigerant handling requires EPA certification. This work must be done by a qualified technician.
Why does my RV AC keep freezing up?
Freezing most often results from restricted airflow caused by a clogged filter or dirty coils. Clean the filter, restore airflow, let the unit thaw, and monitor for recurrence.
How do i know if my RV AC needs professional repair?
Warm air after cleaning filters, repeated breaker trips, strange noises, water leaking inside, or short cycling all indicate the need for professional diagnosis rather than further DIY troubleshooting.
